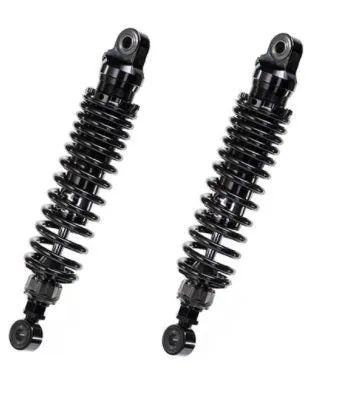

Introducing the YSS Harley Davidson Street 750 2014-2018 Shock Absorber, Black Edition Topline Rear Twin Shock. This meticulously crafted suspension system is designed to elevate your riding experience to new heights, offering unparalleled performance and adjustability.
Technical Specifications:
- Collection: Black Edition
- Year: 2014-2017
- Product Group: Topline
- Shock Type: Rear Twin Shock
- Product Type: Top External Reservoir Piggy Back Gas Shock
- ABE: Not Applicable
Dimensions:
- Length: 320-330 mm
- Top Diameter: 12x21 mm
- Bottom Diameter: 12x21 mm
- Spring Dimensions: 46-25-35-200 mm
- Piston Size: 36 mm
- Shaft Size: 12 mm
Adjustability Features:
-
Compression Adjustable:
- Description: Allows control over the compression stage of shock absorbers.
- Adjustment: Adjustable in steps with 30 settings.
-
Thread Spring Preload:
- Description: Enables fine-tuning of spring tension through a threaded cylindrical design.
- Adjustment: User can turn the preload for customization; a provided bolt fixes the ring in position.
-
Rebound Adjustable:
- Description: Controls the recovery speed of the shock absorber based on driver preferences.
- Components: Volume control knob, needle shaft, Free Bleed oil through hole.
- Adjustment: Dial for precise time adjustment.
-
Length Adjustable:
- Description: Offers flexibility by allowing an increase in the length of the shock absorber.
- Options: Two types - upgradable to 10 mm or adjustable within a range of /- 5 mm.
