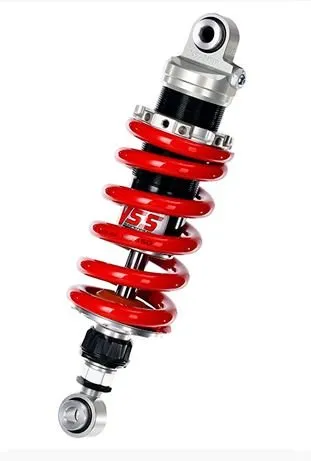

Kawasaki Versys 650 2007 - 2014 Yss shock absorber

PRODUCT GROUP:Topline

SHOCK TYPE:REAR MONO SHOCK
PRODUCT TYPE:Emulsion Gas Shock
ABE:Yes
LENGTH:290-300 (MM.)
TOP:12×30 (MM.)
BOTTOM:12×32 (MM.)
SPRING:56-180-150 (MM.)
PISTON SIZE:45 (MM.)
SHAFT SIZE:16 (MM.)

THREAD SPRING PRELOAD

Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position.

REBOUND ADJUSTABLE

Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

LENGTH ADJUSTABLE

Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths /- 5 mm.
