MAV-05600-2

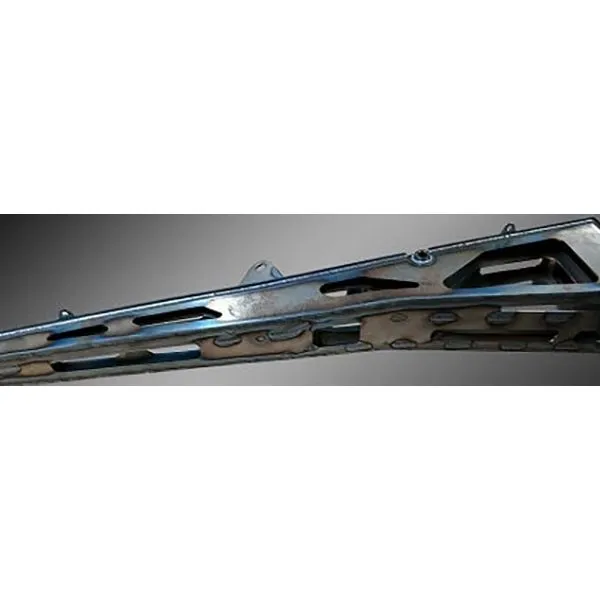

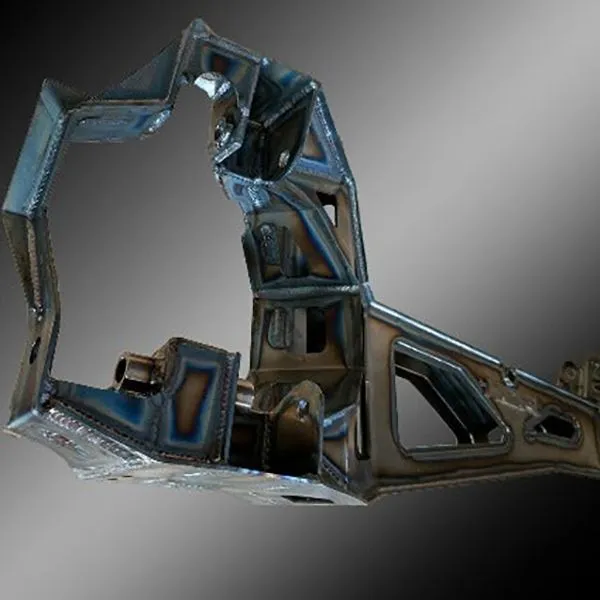

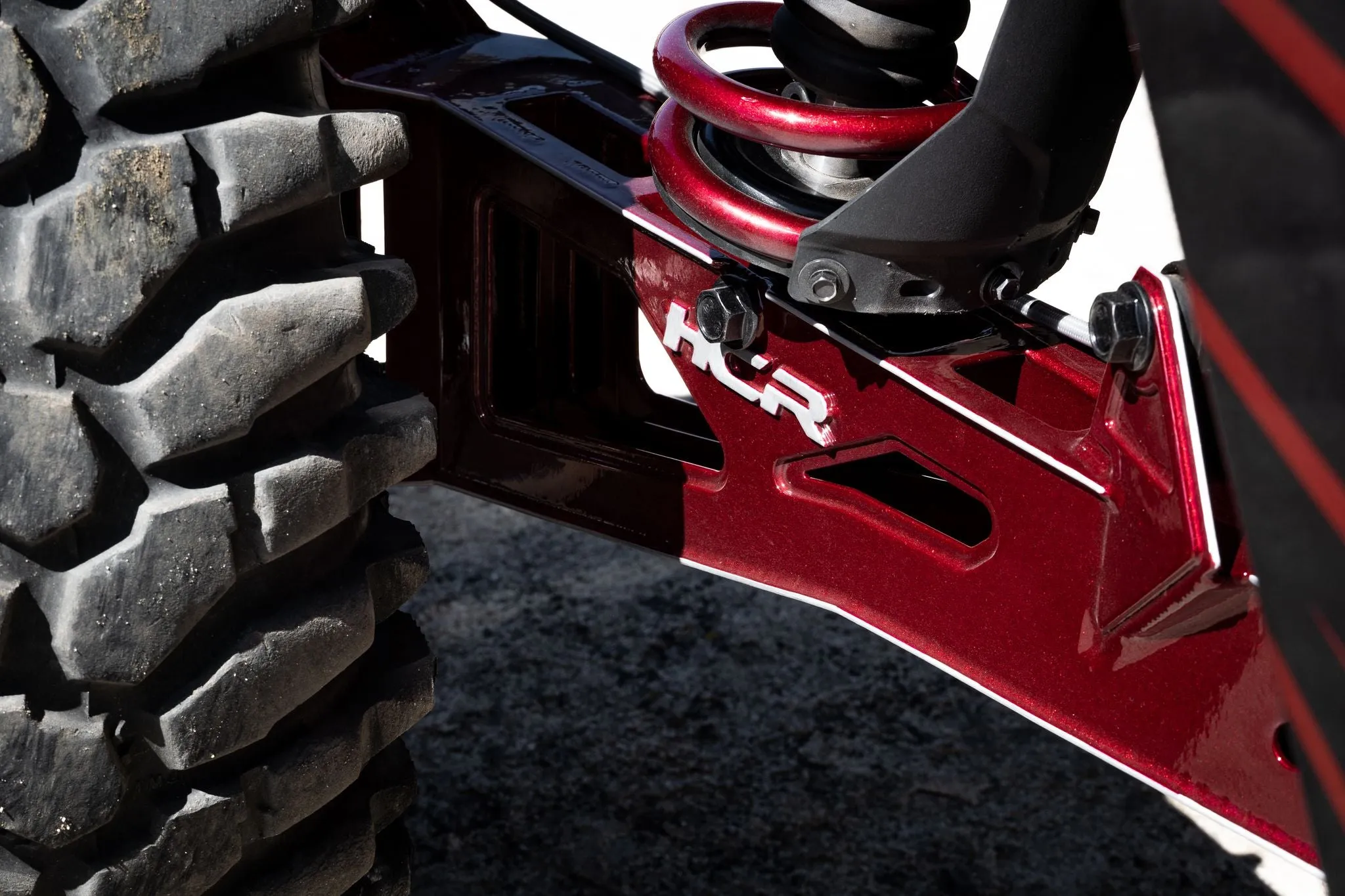

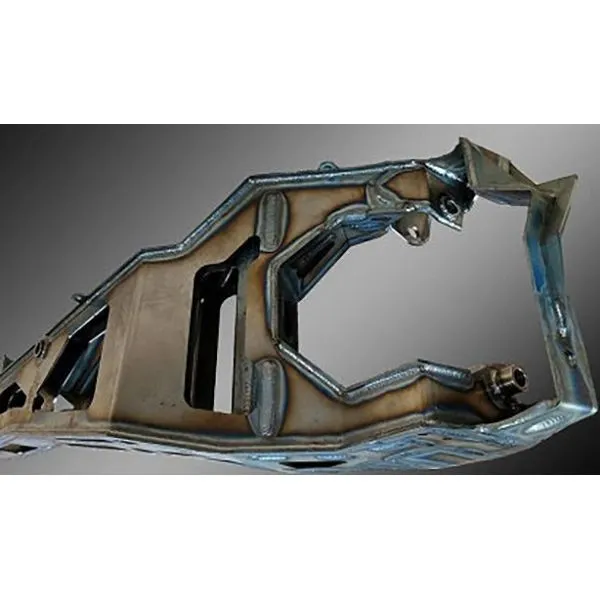

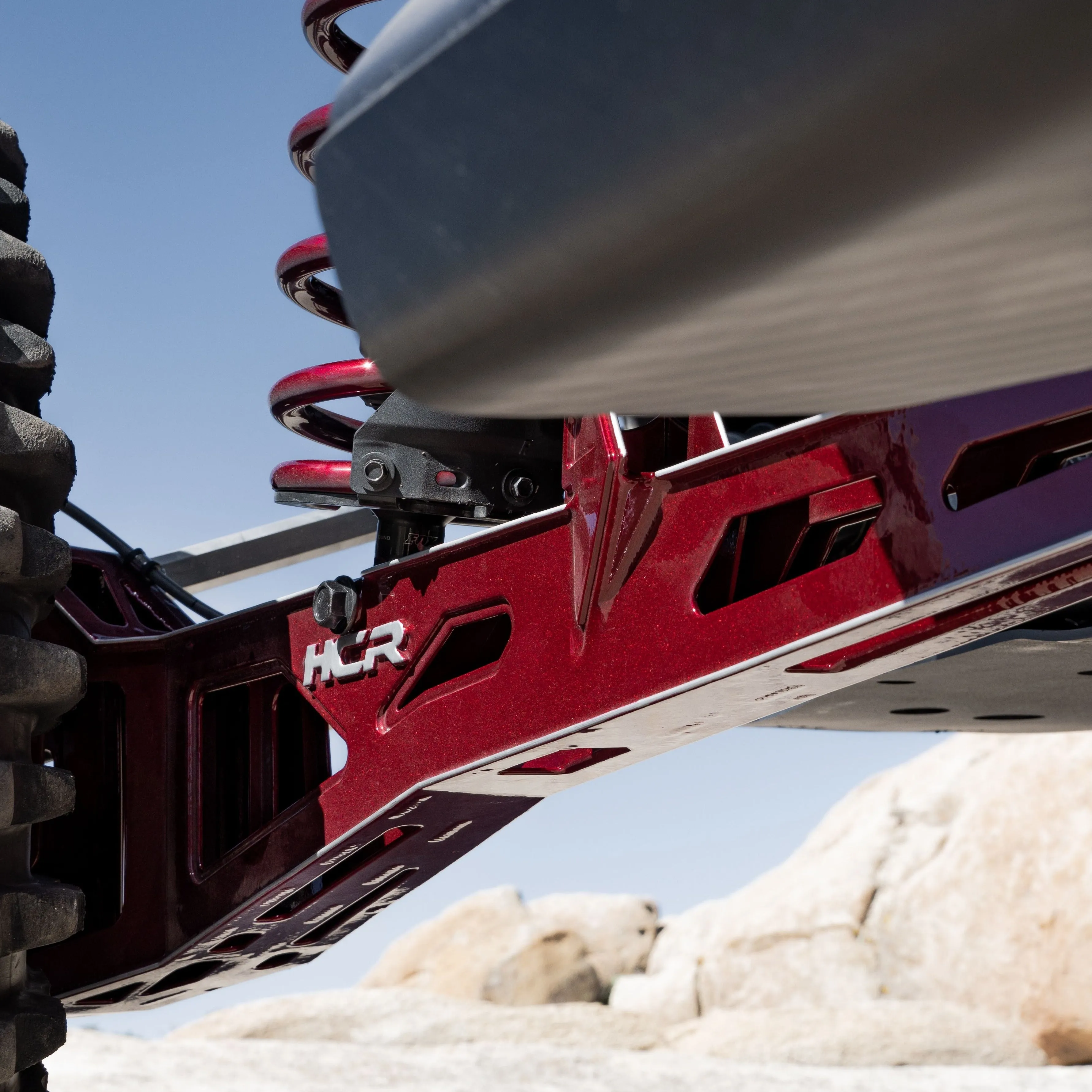

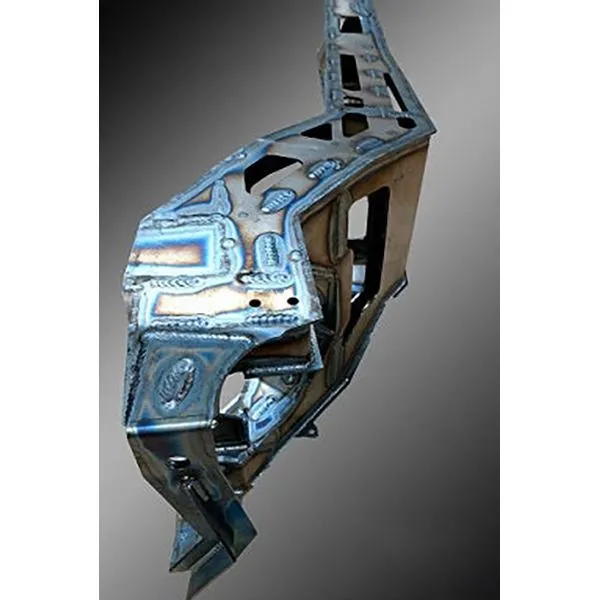

HCR Suspension's Can-Am Maverick X3 Elite Trailing arms were designed to keep weight down, add necessary strength and providing the unique look that only HCR provides. These replacement trailing arms are retaining the factory width of 72" and do not add any travel, however they do provide greater ground clearance by improved approach angles and a solid slate bottom surface to ensure you won't get caught up on anything on the trail. This X3 Elite Trailing arm kit comes with 2 Trailing arms (Driver and Passenger), 2 new lower Shock mounting bolts, Brake line hardware and every other piece is reusing factory hardware.

Trailing arms can be purchased Raw material or powder coat is done as an additional option. The material our arms are built from do rust/corrode so coating them is Highly recommended.

Fitment:

72" Models

• Can-Am Maverick X3 X RC Turbo R : 2018-2020

• Can-Am Maverick X3 X RC Turbo RR : 2020-2021

• Can-Am Maverick X3 X RS Turbo R : 2017-2020

• Can-Am Maverick X3 RS Turbo R : 2021

• Can-Am Maverick X3 X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 X MR Turbo R : 2018-2019

• Can-Am Maverick X3 X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X RS Turbo : 2017-2020

• Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020

• Can-Am Maverick X3 MAX RS Turbo R : 2021

• Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021

• Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021

• Can-Am Maverick X3 RS Turbo RR 72 : 2022

• Can-Am Maverick X3 X RS Turbo RR 72 : 2022

• Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022

• Can-Am Maverick X3 X RC Turbo RR 72 : 2022

• Can-Am Maverick X3 X MR Turbo RR 72 : 2022

• Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022

• Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022

• Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022

• Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022

*BACKORDERED 4-6 WEEKS TO ORDER PLEASE SEND AN EMAIL TO [email protected]

* 2021 Smart shock Models will need an additional bracket

*NOTE: 14" WHEELS WILL NOT FIT

*Does not come with trailing arm radial bearings (Replace with Can-Am OEM hardware) *
