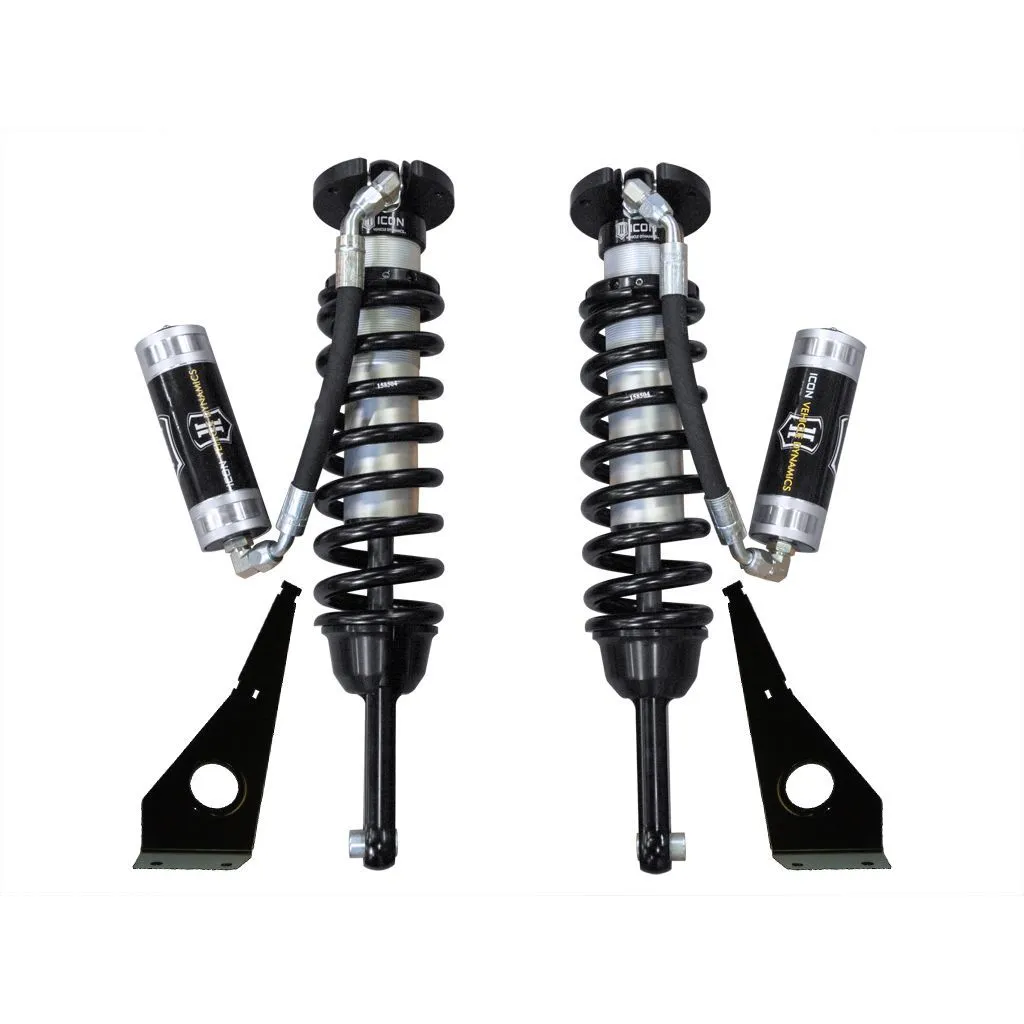

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. These coil-overu2019s are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear. - Adjustable ride height from 0" - 3.5"
- Race shock piston with flutter stack compression valving
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets
- Cad-plated threaded body / Extreme Weather Plating Option Available
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- Mounting Bracket Orients Reservoir for Optimum Tire Clearance
- External Reservoir Ensures Maximum Cooling
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
Additional Attributes:
- GTIN: 00840103404417
- Lower Mount Type: Eyelet
- Upper Mount Type: Mounting Plate
- 50: No
- Gas Charged: yes
- Body Diameter: 2.5
- Coil Over Springs Included: Yes
- 110: No
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shaft Diameter: 7/8
- Spring Rate: 650
- Spring Material: Steel
- Damping Type: Oil
- Adjustable Height: yes
- Spring Color: Black
- Grade Type: Performance
- Adjustable Damping: NO
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Remote Reservoir: Yes
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: x x inches
